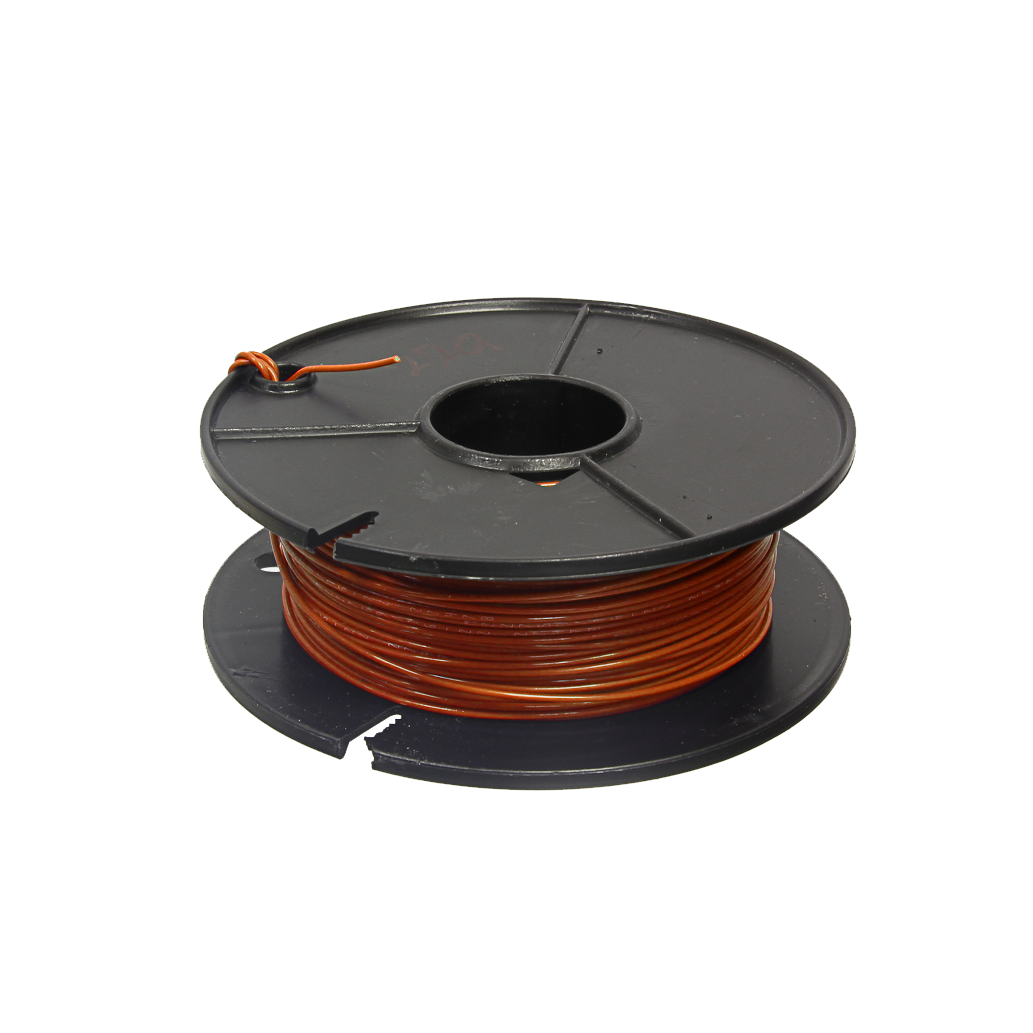

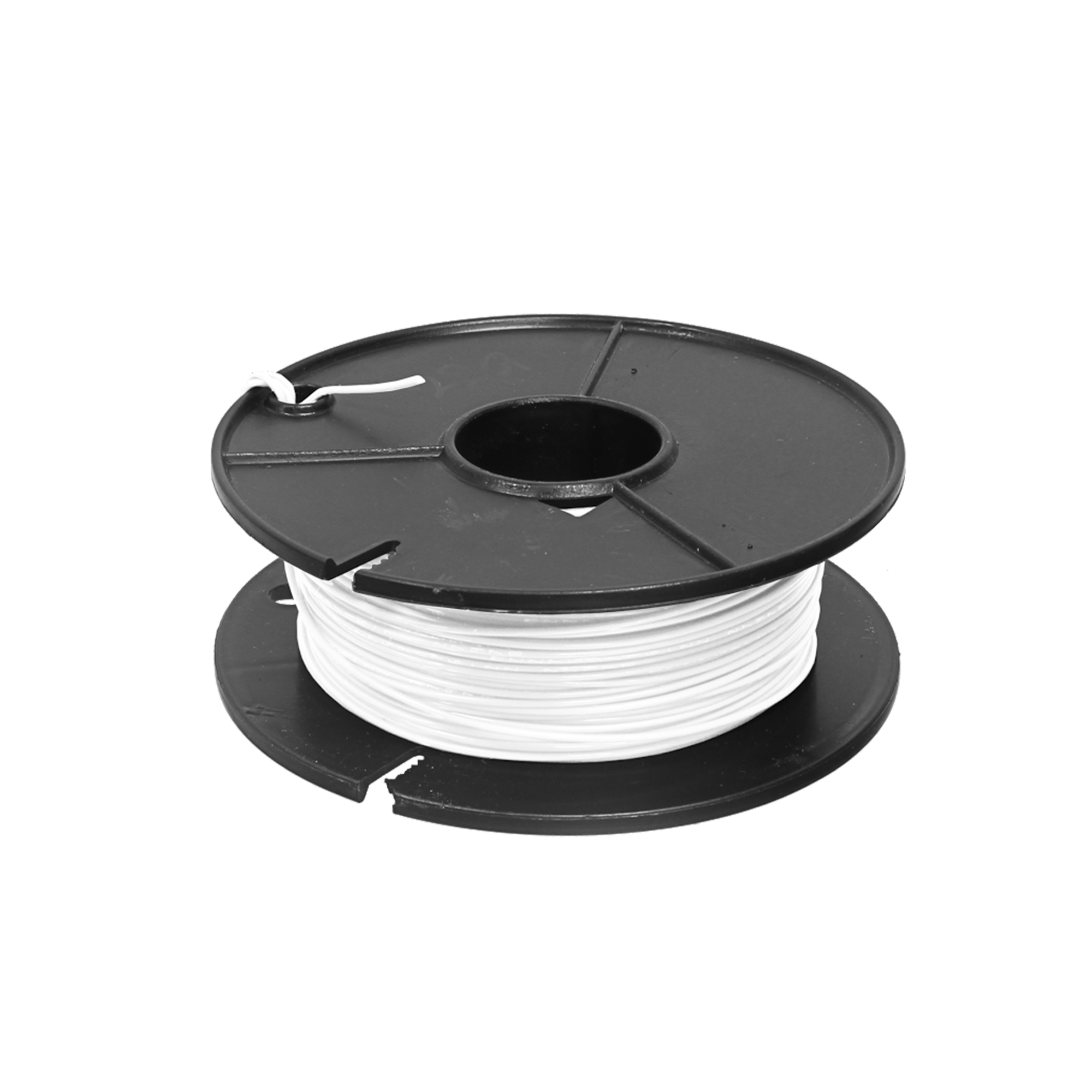

M22759/32 Wire - 22AWG, 250ft Roll

THIS IS FOR A 250 FOOT ROLL (76.2 METERS)

This lightweight, high temperature airframe and avionics wire utilizes an insulation of cross-linked, modified ethylene tetrafluoroethylene copolymer (ETFE). The insulation resists high PH cleaning fluids, fuels, lubricating oils, and many other chemicals. The wire can withstand temperature extremes ranging from cold bend (-65°C) through (150°C) . This wire is a mechanically tough, flame retardant and weight saving solution to many defense, aerospace and motorsports applications.

Applications

MIL-W-22759/32 wires have cross-linked extruded ETFE insulation for aerospace and other applications requiring light weight, tight diameter tolerances, and enhanced mechanical toughness. Cross-linked ETFE insulation also provides exceptional resistance to radiation and chemicals.

Conductor: Tin Plated Copper
Insulation: Cross Linked ETFE
Temperature Rating: -65 - 150°C
Voltage Rating: 600 Volts R.M.S.
Cable Type: Spec 55A
Gauge: 22
Impulse Dielectric Test: 100% test, 8.0kV Peak
